The 200 Series LandCruiser is legendary for a reason — and a GVM upgrade is what takes it from great to genuinely capable under a full touring load. With four stages available, you can push the 200 Series from its factory 3350kg GVM all the way up to 4200kg, with GCM revisions up to 7700kg.
Engineered by Lovells and Tough Dog — twin tube diesel, foam cell, remote reservoir platinum, or adjustable mono. All federally approved, all professionally installed by BAW Automotive in Brisbane.
BTC UPGRADE: The Lovells 4,000kg Braked Towing Capacity (BTC) upgrade is only available in conjunction with a Lovells GVM upgrade. It cannot be installed as a standalone product.
SUIT MODELS: Toyota LandCruiser 200 Series (2007–2022)
IMPORTANT: Pricing includes post-registration engineering approval within Queensland. Pricing excludes load-rated wheels and tyres.
All upgrade installations are performed by BAW Automotive in Brisbane.───────────────────────────────────────
STAGE 1 — LOVELLS 3,800KG
GVM: 3,800kg
GCM: 7,300kg (Diesel only)
Front Axle Rating: 1,800kg
Rear Axle Rating: 2,000kg
Tyre Size: Factory tyres meet minimum specification
Towing Capacity: 3,500kg
What's included in the kit:
Kit: TOYKIT067-GVM-D
• Lovells Front Coil Springs — TFR-121 (minimal accessories) / TFR-123 (alloy/light steel bullbar) / TFR-123HD (steel bullbar/winch)
• Lovells Rear Coil Springs — TRR-122HD (under 1,600kg axle) / TRR-122HDAV (over 1,600kg axle)
• Professional installation
• Wheel alignment
• Freight from Lovells HQ in Sydney
───────────────────────────────────────

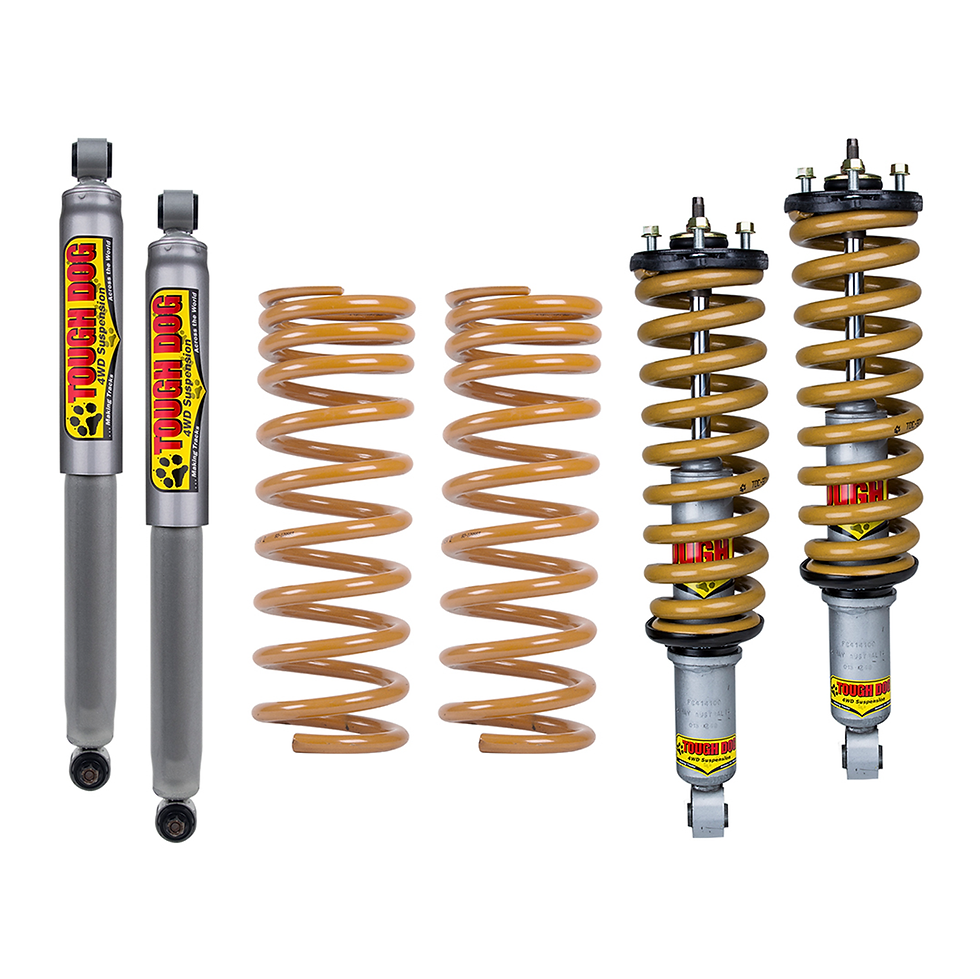

STAGE 2 — TOUGH DOG 3,850KG
GVM: 3,850kg
GCM: OE Spec (no GCM revision on this stage)
Tyre Size: Factory tyres meet minimum specification
Towing Capacity: OE Spec
What's included in the kit:
Kit: TDGVM-043
• Front Foam Cell Shock Absorbers (x2)
• Rear Foam Cell Shock Absorbers (x2)
• Rear Coil Springs (x2)
• Professional installation
• Wheel alignment
• Freight from Tough Dog HQ in Sydney
───────────────────────────────────────
STAGE 3 — LOVELLS 4,000KG
GVM: 4,000kg
GCM: 7,500kg
Front Axle Rating: 1,900kg
Rear Axle Rating: 2,100kg
Tyre Size: Factory tyres meet minimum specification
Towing Capacity: 3,500kg
What's included in the kit:
Kit: TOYKIT081-GVM-PLAT
• Lovells Front Coil Springs — TFR-121 (minimal accessories) / TFR-123 (alloy/light steel bullbar) / TFR-123HD (steel bullbar/winch)
• Lovells Rear Coil Springs — TRR-122HD (under 1,600kg axle) / TRR-122HDAV (over 1,600kg axle)
• Lovells GVM-Rated Front Upper Control Arms — LOVUCA-200
• Professional installation
• Wheel alignment
• Freight from Lovells HQ in Sydney
───────────────────────────────────────
STAGE 4 — LOVELLS 4,200KG PLATINUM
GVM: 4,200kg
GCM: 7,700kg
Front Axle Rating: 1,960kg
Rear Axle Rating: 2,304kg
Tyre Size: Factory tyres meet minimum specification
Towing Capacity: 3,500kg
What's included in the kit:
Kit: TOYKIT083-GVM-PLAT
• Lovells Front Remote Reservoir Mono Shocks — 64611007S-2.0ADJMONO
• Lovells Rear Remote Reservoir Mono Shocks — 64611008S-2.0ADJMONO
• Lovells Front Coil Springs — TFR-121 (minimal accessories) / TFR-123 (alloy/light steel bullbar) / TFR-123HD (steel bullbar/winch)
• Lovells Rear Coil Springs — TRR-122HD (under 1,600kg axle) / TRR-122HDAV (over 1,600kg axle)
• Lovells GVM-Rated Front Upper Control Arms — LOVUCA-200
• Professional installation
• Wheel alignment
• Freight from Lovells HQ in Sydney
Toyota LandCruiser 200 Series GVM Upgrade | Brisbane
Lovells Stage 1 GCM revised to 7,300kg (Diesel only). Lovells Stage 3 GCM revised to 7,500kg. Lovells Stage 4 GCM revised to 7,700kg. Tough Dog Stage 2 does not include a GCM revision. GCM upgrades are LS16 certified for towing up to 4.5 tonnes. Available PRE & POST registration.
If you have a Lovells GVM upgrade on your 200 Series, you can also add a Lovells 4,000kg Braked Towing Capacity (BTC) upgrade — approved under VTA-040257 & VTA-046734. Must be done in conjunction with a Lovells GVM upgrade. Get in touch to bundle both together.
For more details on BTC upgrades and how they can benefit you, check out our blog post here.
