The Isuzu D-MAX is already a capable tourer straight from the factory — but load it up properly and the factory GVM disappears fast. A federally approved GVM upgrade gives you more legal payload, better suspension under load, and the confidence to run your D-MAX the way it was actually built for.
Factory GVM is 3100kg. All three upgrade tiers bring this up to 3695kg, with GCM options from 6200kg up to 6900kg depending on the kit selected.
Professionally installed by BAW Automotive in Brisbane. Wheel alignment included in all packages. Pre-registration SSM approval included — compliance plate fitted to vehicle.
SUIT MODELS: Isuzu D-MAX RG1 — 3.0L Diesel — 10/2021 On
PLEASE NOTE: Pricing does not include load-rated wheels and tyres, and does not include engineering certification for post-registration installation. Factory tyres are compliant.
───────────────────────────────────────
STAGE 1 - TOUGH DOG
GVM: 3695kg
GCM: 6200kg
Payload: Up to 1675kg (est.)
Towing Capacity: OE Spec
What's included in the kit:
• Kit Number (TDGVM-056)
• 2x Assembled Front Struts — Foam Cell
• 2x Rear Shocks — Foam Cell
• 2x Rear Leaf Springs
• CAT 6 Indicators (bolted into quarter panel)
• Federal compliance plate
• Professional installation
• Wheel alignment
• Freight from Tough Dog HQ in Melbourne
───────────────────────────────────────
STAGE 2 - LOVELLS TOURING
GVM: 3695kg
GCM: 6200kg
Payload: Up to 1675kg (est.)
Towing Capacity: 3500kg (OE Spec)
What's included in the kit:
• Kit Number (ISUZKIT009-GVM)
• 2x Lovells heavy duty front coil springs
• 2x Lovells heavy duty rear leaf springs
• Lovells Gas Legend twin tube shock absorbers — front and rear
• 2x CAT 6 compliant indicators
• Federal compliance plate
• Professional installation
• Wheel alignment
• Freight from Lovells HQ in Melbourne
───────────────────────────────────────

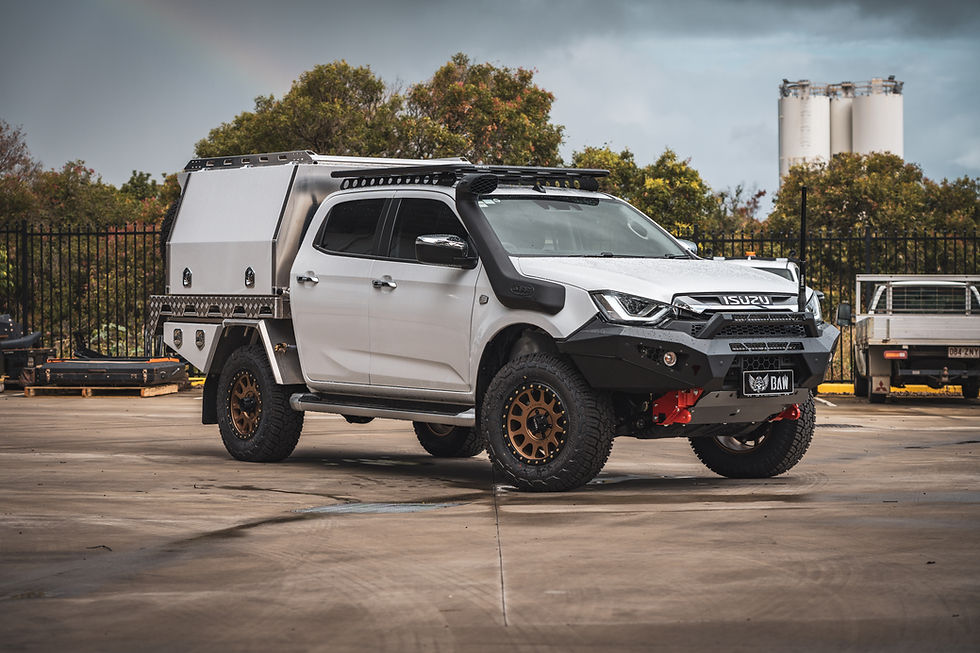

STAGE 3 - LOVELLS PLATINUM + COOLING UPGRADE
GVM: 3695kg
GCM: 6900kg
Payload: Up to 1675kg (est.)
Towing Capacity: 3500kg (OE Spec)
What's included in the kit:
• Kit Number (ISUZKIT009-GVM-R-PLA)
• 2x Lovells heavy duty front coil springs
• 2x Lovells heavy duty rear leaf springs
• Lovells 8-Way Adjustable Remote Reservoir shock absorbers — front and rear
• 1x Lovells Radiator Closemesh (cooling upgrade)
• 2x CAT 6 compliant indicators
• Federal compliance plate
• Professional installation
• Wheel alignment
• Freight from Lovells HQ in Melbourne
Isuzu D-MAX GVM Upgrade Package – Federally Approved | Brisbane
Tough Dog kit federally approved under VTA-061549. Lovells kits federally approved under VTA-060211. All engineering, testing, and certification completed by the respective supplier. Pre-registration Second Stage of Manufacture (SSM) upgrade — legal across all Australian states and territories.
Stage 1 and Stage 2 upgrade GCM to 6200kg. Stage 3 upgrades GCM to 6900kg via Lovells Radiator Closemesh cooling package. GCM upgrades are LS16 certified for towing. Available PRE & POST registration.
